Bedroom Circuit

DSCF3018

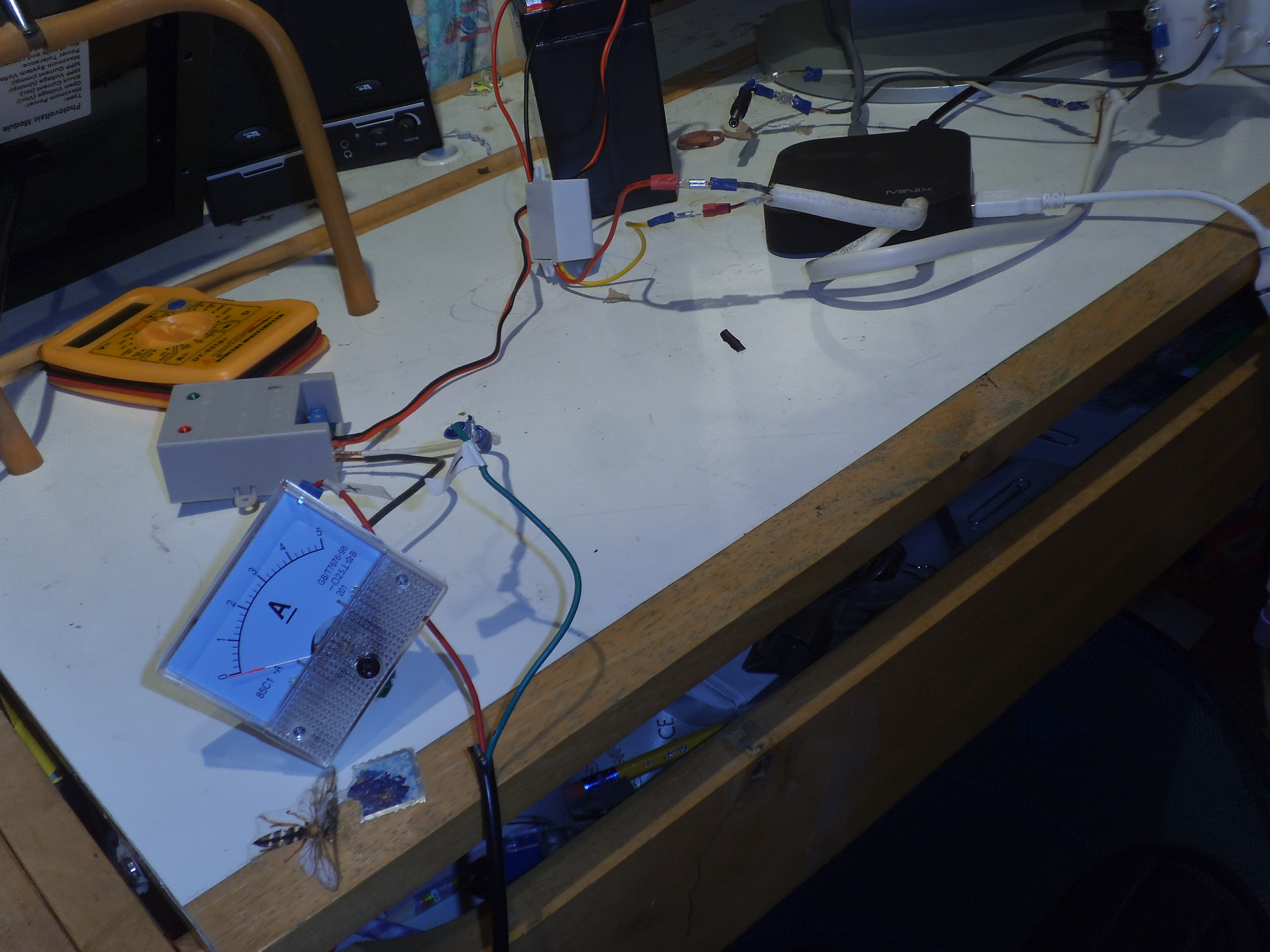

This is the circuit me and dad put together in my room. There are still some problems, but we hope we figured them out.

We are trying to run the MINIX media center, by solar power. We thought we had it all working, but it turned out (we think,) that our voltage converter was a bad one. We should be getting new parts on January 2nd, and that will hopefully solve our problems.

Our starting plan was:

A: connect charge converter to charge controller

B: connect the solar panel’s – wire directly to the charge controller.

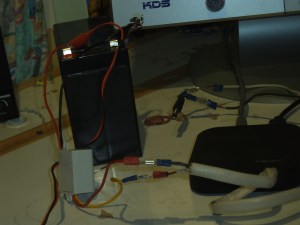

C:connect the battery to the charge controller

D: connect the computer to charge converter

E: splice in an ammeter to the solar panel line

F: splice in an ammeter to the computer line

G:connect the keyboard to the computer

H:connect the monitor to the computer
